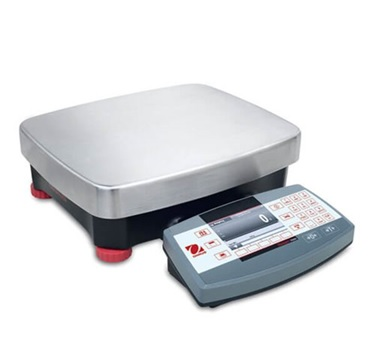

Top-of-the-Line Counting Scales for Complex Industrial Applications
The Ranger 7000 offers the highest level of counting features in the OHAUS industrial products line-up. Ranger 7000 boasts the highest weighing and counting resolution, the largest color display, advanced software for both counting and checkcounting, multiple connectivity options, as well as a large memory library for parts management.

FREE UPS GROUND SHIPPING - In the Continental US Only

Unit of Measure

Specifications

Model

 N/A R71MHD35

Capacity

 N/A 70 lb35 kg

Readability

 N/A 0.0002 lb0.1 g

Calibration

 N/A InCal™

Stabilization Time

 N/A ≤ 1 Second

Weighing Units

 N/A kg, g, lb, oz, lb:oz, Custom Units

Display

 N/A

109 mm / 4.3 in. TFT Graphic LCD

Interface

 N/A Standard RS-232, USB Device, USB Host Optional Ethernet, 2nd RS-232, 2nd scale, 2 In/4 Out Discrete I/O

Pan Size

 N/A 12.2 x 14.8 in311 x 370 mm

Certified Readability

 N/A 0.002 lb1 g

Net Weight

 N/A 10.9 lb24 kg

Ground Shipping Price

 N/A FREE

Shipping Dimensions and Weight

Shipping Weight / Dimensions

 N/A 32 lb / 27 x 21 x 13 in.

Features

N/A

  • Audible Alerts
  • Environmental Filters
  • External Analog Base Input (option)
  • GLP Data Output
  • GMP/GLP
  • Internal calibration
  • LED Checkweighing Indicator
  • Level Indicator
  • Leveling Feet
  • NTEP Certified
  • Overload/Underload Indicators
  • Rechargeable Battery
  • Stability Indicator
  • Time/Date
  • Weigh Below Hook (option)
  • Warranty : 1 Year

Applications

N/A

  • Accumulation
  • Checkweighing
  • Density determination
  • Differential Weighing
  • Display Hold
  • Dynamic Weighing
  • Filing
  • Formulation
  • Gross / Net / Tare
  • Parts Counting
  • Percent Weighing
  • Sieve Analysis
  • Statistics
  • Totalization
  • Weighing

Notes

N/A

Ships from OH 43085
