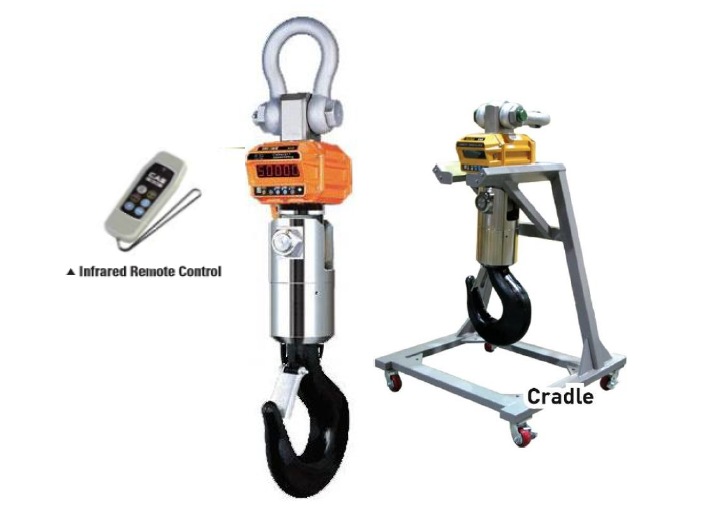

The Caston 3 Plus is a full featured industrial crane scale for heavy duty use with standard features that include a 1.5" high intensity LED display, easy access to the rechargeable battery pack, wireless remote control, swivel hook, sun visor, and IP65 rating.

Bluetooth enabled models include the PC25 Bluetooth module and the TWN Portable Hand Held Indicator that offers data communication from Indicator to Crane Scale. The TWN's design incorporates wireless communication capabilities that enable transmission of data in excess of 300 feet / 100 meters.

Portable steel crane scale cradle included for storage and transportation on 60k and 100k models.
Scale length is measured from upper inside of shackle to lower inside of hook.

This product can only ship by LTL Motor Freight
Unit of Measure

Specifications

MFR

 N/A CAS-USA

Capacity

 N/A 60,000 lb30,000 kg

Readability

 N/A 20 lb10 kg

Accuracy (±)

 N/A 0.1% of Applied Load

Hook Throat Opening

 N/A 4.25 in108 mm

Scale Length

 N/A 47.24 in1,200 mm

Bluetooth

 N/A No

Includes

 N/A Portable steel crane scale cradle for storage and transportation Wireless Hand-Held Remote Controller

Maximum Tare

 N/A Full Capacity

Display

 N/A LED - 1.5 In./ 38 mm

Display Designators

 N/A Zero, Tare, Hold, Low Batt

Operating Power

 N/A DC 12 V, Rechargeable Battery

Power Source

 N/A AC 120 V, 50/60 Hz

Power Consumption

 N/A 1.2 W

Charging Time

 N/A 6 h

Operational Time

 N/A 14 to 24 h

Operating Temperature

 N/A 14 to 104 ºF-10 to 40 ºC

Safe Overload

 N/A 150 % of Capacity

Dimension A

 N/A 1.97 in50 mm

Dimension B

 N/A 47.24 in1,200 mm

Dimension C

 N/A 5.43 in138 mm

Dimension D

 N/A 4.25 in108 mm

Net Weight

 N/A 484.6 lb220 kg

Shipping Dimensions and Weight

Shipping Weight / Dimensions

 N/A 42 in x 42 in x 63 in / 710 lb

Applications

N/A

  • Light to Medium Industrial Applications
  • Overhead Weighing
  • Bulk Material Weighing
  • Shipping & Freight
  • Transportation & Logistics

Features

N/A

  • Easy-to-read 1.5 LED display
  • Environmentally Sealed to IP65 Standards
  • Sun visor guarantees readability even in bright light
  • 360° swivel hook
  • Convenient easy-to-change battery
  • Includes: Wireless Remote Control, Spare Battery, and Charger
  • Rugged cast aluminum case
  • Bluetooth (on Bluetooth enabled models only)
  • Heavy-Duty Steel Portable Scale Cradle included with 60K and 100K capacity Caston 3 models
  • Factory Calibration Certificate
  • 2 Year Limited Warranty

Notes

N/A Ship point NJ 07073
