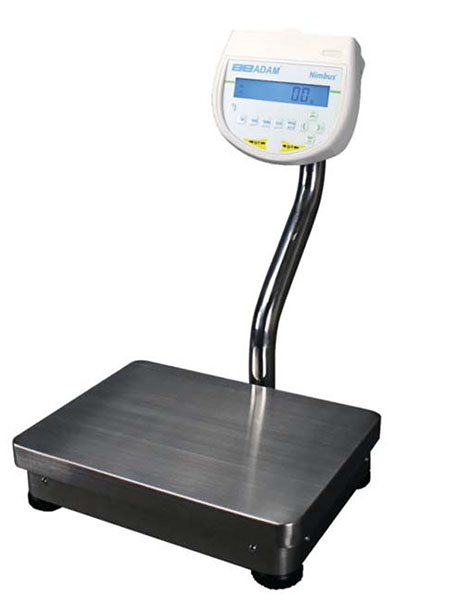

Innovative design combined with powerful performance in a premier balance. Nimbus® Heavy-Duty high-capacity balances feature durable construction and easy operation. With a readability of 0.1g, capacities from 12,000g to 22,000g, plus USB and RS232 connections, the precision balance provides a streamlined weighing experience. Innovative design enables a compact footprint, so the balance occupies minimal space but retains a high level of performance. Solid metal construction throughout the balance provides the durability to withstand chemicals and rigorous daily use. The weighing sensor in the Nimbus® contains fewer parts than a traditional force motor balance. Efficient mechanics plus improved electronics provide more consistent readings. With numerous weighing units including a customizable unit, Nimbus® capably handles Parts Counting, Percentage Weighing, Density Determination for liquids or solids, and Dynamic / Animal Weighing. A great value for the materials testing market.

FREE UPS GROUND SHIPPING in the Continental US Only

Unit of Measure

Specifications

Model

 N/A NBL 16001P

Type

 N/A Heavy Capacity Precision

MFR

 N/A ADAM

Capacity

 N/A 16000 g

Readability

 N/A 0.1 g

Pan Size

 N/A 15.7 x 11.8 in400 x 300 mm

Repeatability (S.D.)

 N/A 0.2 g

Linearity (±)

 N/A 0.4 g

Weighing Units

 N/A g, kg, ct, GN N, lb, oz, lb: oz, dwt, Custom Unit

Interface

 N/A RS-232 / USB

Calibration

 N/A External

Display

 N/A

Backlit LCD with 0.8 in / 20 mm High Digits (with Pole)

Power Supply

 N/A 12 VDC 800 mA Adapter

Operating Temperature

 N/A 15 to 35 ºC59 to 95 ºF

Housing

 N/A Extruded Aluminum

Overall Dimensions (W x D x H)

 N/A 15.8 x 18.1 x 4 in401 x 460 x 102 mm

Net Weight

 N/A 16.9 lb7.3 kg

Box Dimension

 N/A 21.5 x 18.7 x 9 in546 x 475 x 229 mm

Shipping Weight

 N/A 22 Pound10 Kilogram

Features

N/A

  • AC adapter included
  • External calibration allows for verification and adjustment with (optional) weights
  • Large grade 304 stainless steel pan
  • Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
  • Multilingual display
  • Pole mounted indicator (on pole models only)
  • Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
  • Robust die-cast aluminum housing protects intercomponent
  • Sealed keypad protects against dirt and spills
  • Selectable digital filtering helps minimize the effects of vibration and external disturbances
  • USB and RS-232 interfaces included
  • Vivid backlit LCD easily visible in any lighting condition
  • Zero-tracking feature ensures display returns to zero reading
  • 5 YEAR LIMITED WARRANTY

Applications

N/A

  • Dynamic / animal weighing
  • Parts counting
  • Percentage weighing
  • Weighing

Notes

N/A

Ship Point CT 06478
