Capacity: 220g to 8,200g             Readability: 0.001g to 0.1g

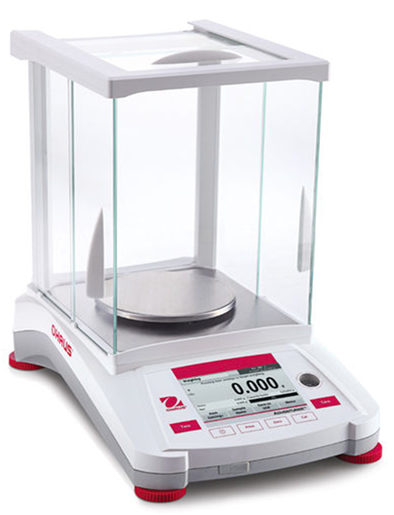

The most complete balance in its class. The Adventure Analytical Balances incorporates nine application modes necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, RS232, USB Device, USB Hosts, ingenious space-saving Draftshield on 1mg capacity models, with select models featuring AutoCal™ Ohaus' automatic internal calibration system that performs routine maintenance by calibrating the balance daily.

Free UPS GROUND SHIPPING - in Continental US only

Unit of Measure

Specifications

Model

 N/A AX623

Type

 N/A Precision

Capacity

 N/A 620 g

Readability

 N/A 1 mg

Calibration

 N/A Autocal™ and External

Linearity Deviation (±)

 N/A 0.002 g

Stabilization Time

 N/A ≤ 2 seconds

Weighing Units

 N/A g, mg, kg, ct, gn, ozt, dwt,N, mom, tical, msg, tola, Baht, carat, gram, mesgal, milligram, momme, Newton, ounce, pennyweight, pound, Tael (Hong Kong), Tael (Singapore), Tael (Taiwan), troy ounce, custom unit (1)

Display

 N/A 109 mm / 4.3 in. (Diagonal) Full-Color Touchscreen

Interface

 N/A RS232, USB Host, USB Device

Power Supply

 N/A AC Adapter Input: 100 to 240 VAC, 0.3 A, 50-60 Hz, Output 12 VDC 0.84 A

Pan Size

 N/A 5.1 in. / 130 mm Diameter

Base Housing Dimensions (W x D x H)

 N/A 13.93 x 13.39 x 9.05 in354 x 340 x 230 mm

Tare Range

 N/A To Capacity by Subtraction

Temperature Range

 N/A 10 to 30 ºC50 to 86 ºF

Humidity Range

 N/A Maximum Relative humidity 80% for temperatures up to 86ºF/30ºC

Optional Calibration/Test Weight

 N/A ASTM CLS 4, 10 kg GHDL, SST satin, No Cert, Item# 13315 ASTM CLS 4, 2 kg CYL, SST satin, No Cert, Item# 13277

Optional Calibration/Test Weight + Certification

 N/A ASTM CLS 4, 10 kg GHDL, SST satin, w/ Cert, Item# 13315AC ASTM CLS 4, 2 kg CYL, SST satin, w/ Cert, Item# 13277AC

Ground Shipping Price

 N/A FREE

Draft Shield (W x D x H)

 N/A 7-1/8 in. (W) x 6-1/2 in. (D) x 9-1/4 in. (H)

Net Weight

 N/A 12.8 lb5.8 kg

Price

 N/A Add to Cart
for Price

Shipping Dimensions and Weight

Shipping Dimensions

 N/A 20 x 15.4 x 20.9 in507 x 387 x 531 mm

Features

N/A

  • Backlight
  • Environmental Filters
  • GLP Data Output
  • GMP/GLP
  • Internal Calibration on select models
  • Level Indicator
  • Leveling Feet
  • Multi-Language
  • Overload/Underload Indicators
  • Security Bracket
  • Software Lockout
  • Stability Indicator
  • Time/Date
  • Touch Screen
  • Weigh Below Hook
  • Warranty : 2 Years

Applications

N/A

  • Accumulation
  • Checkweighing
  • Density Determination
  • Display Hold
  • Dynamic Weighing
  • Formulation
  • Gross/Net/Tare
  • Parts Counting
  • Percent Weighing
  • Statistics
  • Totalization
  • Weighing

Notes

N/A Ships from OH 43085
