Capacity: 0.2 kg to 21 kg    Readability: 0.001 g to 1 g

The WLC.X2 series feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips. Ease of operation, clear menu and practical arrangement of the display guarantee the best ergonomics for your everyday tasks. A wide array of available interfaces facilitates selection of the most optimal means for communication. The WLC X2 series balances offer unlimited possibilities for cooperation with external devices, providing printing, copying, archiving and data transfer. Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The housing is made of plastic, and the pan is made of stainless steel. In new WLC.X2 series balances the information system is based on 7 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.

FREE UPS GROUND SHIPPING - In the Continental US Only

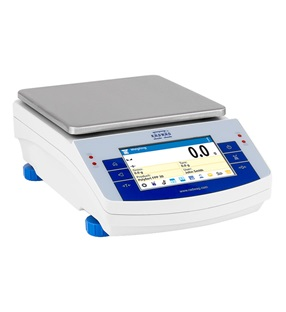

RADWAG WLC X2 Precision Balances

Unit of Measure

Specifications

FREIGHT - UPS-GND

 N/A FREE

Model

 N/A WLC 1/10.X2

Type

 N/A Precision

MFR

 N/A RADWAG

Capacity

 N/A 1 kg
10 kg

Readability

 N/A 0.01 g
0.1 g

Calibration

 N/A External

Tare Range

 N/A -10 kg

5 Percent Maximum Repeatability

 N/A 0.015 g0.08 g

Maximum Repeatability

 N/A 0.4 g

Linearity (±)

 N/A 0.03 g0.3 g

Stabilization Time

 N/A ~2 sec~4 sec

Pan Size

 N/A 195 x 195 mm

Display

 N/A 5 in. graphic color touch screen

Verification

 N/A No

Keypad

 N/A 6 key membrane

Protection class

 N/A IP 43

Touch-free operation

 N/A 2 programmable proximity sensors

USB-A

 N/A 1

USB-B

 N/A 1

Ethernet

 N/A 10 / 100 Mbit

RS 232

 N/A 2

Wi-Fi®

 N/A 802.11 b/g/n

Direct Current (DC) Power Supply

 N/A 12 to 16 V

Power Consumption

 N/A 4 W

Operating Temperature

 N/A 10 to 40 ºC

Atmospheric Humidity

 N/A 40 to 80 %

Weighing Pan Dimensions

 N/A 195 x 195 mm

Weighing Device Dimensions

 N/A 333 x 206 x 100 mm

Net Weight

 N/A 2.2 kg

Gross Weight

 N/A 3.8 kg

Specifications

 N/A
  • Excellent performance and weighing precision enable applying WLC X2 balances in laboratories and industries.
  • Thanks to a clear and intuitive menu layout and 5" color touch screen, maximum comfort and incredibly easy operation are both ensured.
  • Customization via Widgets
  • Display customization allows you to run any selected function directly from the home screen.
  • Internal adjustment system guarantees the highest accuracy and reliable measurements results.
  • Two programmable proximity sensors can be assigned with any function or application. The given function when assigned is both run and operated touch-free.
  • The instrument enables saving all data of carried out measurements as reports and graphs.
  • Wide capacity range enables you to select appropriate weighing instrument suiting your needs and requirements.

Shipping Dimensions and Weight

Shipping Weight / Dimensions

 N/A 9 lb / 19 x 16 14

Features

N/A

  • 7 data bases
  • Calibration: Internal or external depending on model
  • Ethernet
  • IR Sensors
  • Manuel leveling
  • 2x RS232
  • USB-A
  • USB-B
  • Wi-Fi®
  • Warranty :2 Year Electronics / 3 Year Mechanism

Applications

N/A

  • ALIBI memory
  • Ambient conditions monitoring
  • Animal weighing
  • Autotest
  • Checkweighing
  • Density determination
  • Dosing
  • Formulation
  • GLP procedures
  • IR sensors
  • Mass for titrator
  • Multilingual menu
  • Newton unit of measurement
  • Parts counting
  • Peak hold
  • Percent weighing
  • Statistics
  • Statistical Quality Control
  • Under-pan weighing

Notes

N/A Ship point FL 33179
