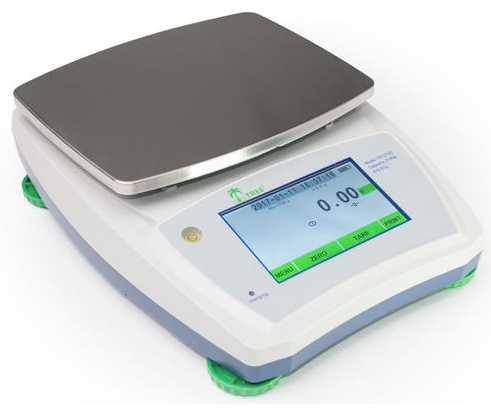

Tree TSC Touchscreen High Resolution Balances provide an easy-to-use and economical solution to precision laboratory measurements. The TSC features a large brilliantly lit, full color Touchscreen display. The intuitive software makes using the TSC simple and efficient, saving you time and money in the lab. With a multitude of functions including general weighing, counting, percentage weighing, and density function. The TSC will quickly become the new workhouse in any lab. With additional features like auto backlight, auto-off, and low battery indicator you will never be left without an operable balance. A rechargeable lithium improves portability time and the AC adapter/charge is included allows for continuous use on a bench. The TSC series includes both RS232 and USB ports for communicating with printers or computers.

FREE UPS GROUND SHIPPING - In the Continental US Only
Unit of Measure

Specifications

MFR

 N/A TREE

Type

 N/A Portable Precision

Model

 N/A TSC-6101

Capacity

 N/A 6,100 g

Readability

 N/A 0.1 g

Resolution

 N/A 0.1 g0.005 oz0.0002 lb0.01 dwt0.0005 ozt0.05 ct0.2 gn

Number of Displayed Divisions

 N/A 61,000

AC Adapter

 N/A Yes, 12 VDC

Accuracy (±)

 N/A 5 Divisions

AD Processor

 N/A 24-bit A/D

AD Update Speed

 N/A 5 Hz

Auto Backlight

 N/A Yes, Selectable

Auto Hold

 N/A false

Auto Shutoff

 N/A Yes, Selectable

Battery

 N/A 7.4 V 2200 mAh Rechargeable

Beeper

 N/A true

Counting Function

 N/A true

Draft Shield

 N/A No

Housing

 N/A ABS Plastic

Internal Resolution

 N/A 15 m

LCD Height

 N/A 0.4 in

Memory

 N/A Zero

Number of Keys

 N/A Touch Screen

Overall Dimensions (W x D x H)

 N/A 8.25 x 10.2 x 3.15 in

Pan Size

 N/A 7.68 x 5.9 in

RS232C Interface

 N/A true

Settling Time

 N/A <2 sec

USB Interface

 N/A true

Weighing Modes

 N/A g, oz, lb, ozt, ct, dwt, gn, tl T, tl H, tl J, dr, mm, tola, gsm, T/AR/ T M/A

Shipping Dimensions and Weight

Shipping Weight / Dimensions

 N/A 6 lb / 13 x 11 x 5 in.

Features

N/A

  • Affordable precision balance fits any budget
  • Adjustable leveling feet
  • Both RS232 and USB ports
  • Compact for portability
  • Displays, weight, count, percentage and density
  • Durable plastic housing
  • External calibration
  • Glass Draft Shield on select models
  • Includes internal lithium rechargeable battery and AC adapter
  • Integrated level bubble ensures proper setup
  • Low battery indicator
  • Overload protection
  • Portable
  • Selectable Auto backlight
  • Selectable Auto shut-off
  • Stability indication
  • Stainless steel weighing pan
  • Touch screen LCD display
  • 2 Year Limited Warranty

Applications

N/A

  • Counting
  • Density
  • Percent Weighing
  • Weighing

Notes

N/A Ships Point CA 94928
