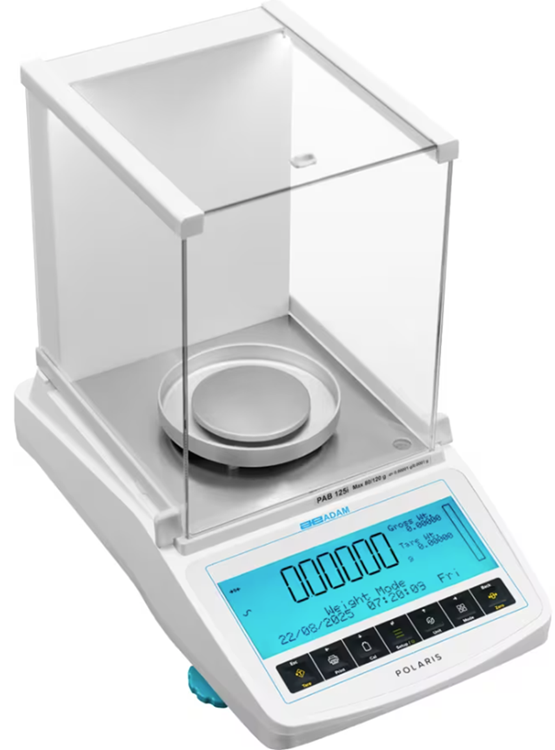

Polaris Sem-Micro Analytical Balance offers dual range, illuminated weighing chamber, capacity tracker, multi-level security, compliance with GLP/GMP, multiple communication interfaces, intuitive multi-line LCD display provides at-a-glance instructions and application status in real time, fast response time, checkweighing is simplified with color-changing backlight to show if sample is within user-specified limits, multilingual, multiple weighing modes plus custom unit, memory storage, in a robust housing with 3-way glass draftshield and internal automatic calibration.

FREE GROUND SHIPPING - Continental US Only
Unit of Measure

Specifications

MFR

 N/A ADAM

Model

 N/A PAB125i

Type

 N/A Semi-Micro

Capacity

 N/A 80 g120 g

Readability

 N/A 0.01 mg0.1 mg

Calibration

 N/A Internal Automatic

Platform Size

 N/A Ø 3.1 in. / 80 mm

Stabilization Time

 N/A 5 sec

Display

 N/A 7.4 in. Backlit LCD Graphical with 1 in. / 26 mm high digits

Interface

 N/A RS-232, USB x2, RJ45 Ethernet, Bluetooth®

Power Supply

 N/A 18 VDC 830 mA Adapter

Housing

 N/A ABS Plastic with Glass Draftshield

Level Bubble

 N/A Yes

Adjustable Leveling Feet

 N/A Yes

Operating Environment Temperature

 N/A 15 to 35 ºC59 to 95 ºF

Overall Dimensions

 N/A 9.3 x 15.7 x 12.2 in235 x 398 x 336 mm

Draftshield Dimensions

 N/A 7.6 x 8.6 x 9.6 in193 x 218 x 243 mm

Net Weight

 N/A 14.8 lb6.7 kg

Shipping Dimensions and Weight

Shipping Dimensions

 N/A 12.8 x 20.5 x 15 in325 x 520 x 380 mm

Shipping Weight

 N/A 17.2 lb7.8 kg

Features

Features

 N/A
  • Bright, LED-lit weighing chamber for clear visibility of samples (PAB models only)
  • Capacity Tracker built into the display for easier monitoring of possible overloads
  • Color-changing backlight in checkweighing mode to ensure if Under, Over or within Acceptable limits
  • Compliance with Good Laboratory Practices (GLP) and Good Manufacturing Practices (GMP) standards for data tracking
  • Connect seamlessly to PCs, printers. or LIMS via Bluetooth®, RJ45 Ethernet, RS-232 and USB x2 interfaces
  • Hook included for below the balance weighing
  • In-use cover provided to protect the balance from dust dirt and moisture
  • Intuitive, easy-to-use display showing instructions, results and application status at a glance
  • Large grade 304 stainless steel pan allows for swift cleaning
  • Multilevel security permissions: 1 administrator plus up to 99 operators
  • Multilingual display permits use in many languages
  • Parts Counting with preset sample sizes
  • Removeable draftshield for easy cleaning and transportation
  • Security slot for optional lock and cable to assist in preventing theft
  • Selectable digital filtering helps minimize effects of vibration and disturbances
  • Solid durable ABS housing to withstand daily use
  • Unique diversion channel below the weighing pan discharges warm air from the weighing chamber for more accurate weighing results (PAB125i only)
  • Up to 200 ingredients can be stored in the internal memory (10 formulations each holding 20 ingredients)
  • Weighing Units; g, mg, ct, dwt, gr, oz, dr, tl.HK, tl.S, tl.T, mm, tol, tk, N, custom unit
  • 5 Year Warranty

Applications

Applications

 N/A
  • Accumulation
  • Check Counting
  • Checkweighing
  • Density Determination
  • Display Hold
  • Dynamic / Animal Weighing
  • Formulation
  • Parts Counting
  • Percentage Weighing
  • Weighing

Notes

Notes

 N/A Ship Point, CT 06478
