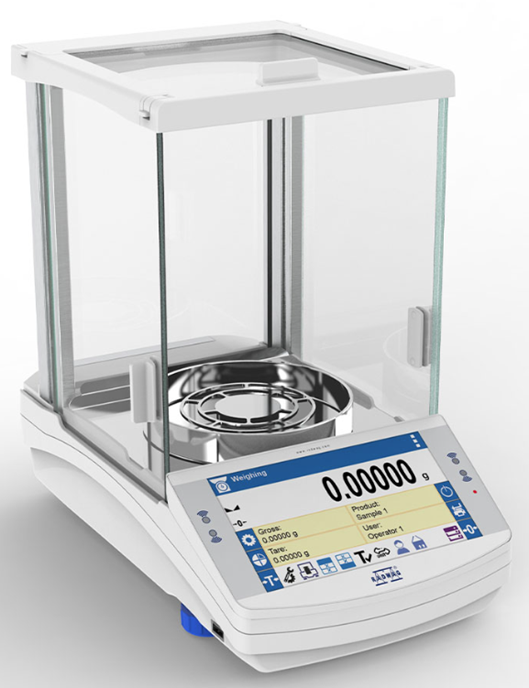

RADWAG AS X7 Plus Series Semi-Micro Balance with Dual Range, 7-inch Color Graphic Touchscreen, Internal Automatic Calibration and Semi-automatic Leveling

The AS X7 Semi-Micro Balances have the latest generation 7-inch color graphic touch screen where the operator can configure a complete set of buttons and assign them to a particular operation, can also define info into text fields. Other features include Internal Automatic Adjustment, Semi-automatic-LevelSENSING that notifies the operator if the balance is out of level in accordance with GLP/GMP, 2 programmable IR sensors allow for some operations to be Hands-Free, equipped with a SMARTLab system ensures support and supervision over the mass measurement process and reduces hazard of error caused by so called "human factor". Communication interfaces include RS232, 2xUSB-A (interchangeable) USB-B, Wi-Fi and Ethernet. Dual Range model allows for two ranges of measurement from fine to coarse seamlessly.

Compliance twith 21 CFR part 11 available as option.

FREE GROUND SHIPPING - Continental US Only

Unit of Measure

Specifications

MFR

 N/A RADWAG

Model

 N/A AS 82/220.X7

Capacity

 N/A 82 g220 g

Readability (d)

 N/A 0.01 g0.1 g

Minimum Load

 N/A 1 mg

Verification Unit [e]

 N/A 1 mg

Draft Shield

 N/A 3-Way Glass

Tare Range

 N/A -200 g

Repeatability

 N/A 0.0014 g

Standard 5 Percent Maximum Repeatability

 N/A 0.001 mg

Maximum Standard Repeatability

 N/A 0.06 mg

Minimum Standard Weight (USP)

 N/A 20 mg

Minimum Standard Weight (U=1%, k=2%)

 N/A 2 mg

Permissible 5 Percent Maximum Repeatability

 N/A 0.02 mg

Maximum Permissible Repeatability

 N/A 0.1 mg

Linearity (±)

 N/A 0.05 g0.2 g

Stabilization Time

 N/A 2 sec

Calibration Adjustment

 N/A Internal (Automatic) + External

Leveling System

 N/A Semi-Automatic LevelSENSING

Display

 N/A

7 in. Graphic Color Touchscreen

Weighing Chamber Doors

 N/A Manual

Weighing Chamber Dimensions

 N/A 7.48 x 7.48 x 8.74 in190 x 190 x 222 mm

Open Work Pan Diameter

 N/A 3.54 in90 mm

Optional Weighing Pan Diameter

 N/A 85 mm

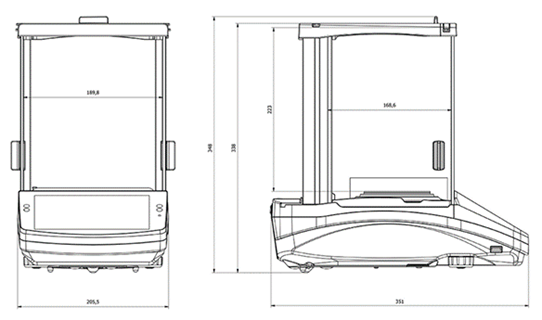

Device Dimensions (W x D x H)

 N/A 8.11 x 13.11 x 8.94 in206 x 333 x 227 mm

Protection Class

 N/A IP 43

Database Capacity

 N/A 9

Touch Free Operation

 N/A 2 - IR Sensors

Communication Interfaces

 N/A 2x USB-A (Interchangeable) Ethernet RS-232 USB-B Wi-Fi®

Power Supply

 N/A Adapter: 100 - 240V AC

50/60 Hz 0.6A; 12V DC 1.2A

Balance: 12 - 15VDC 0.8A max

Power Consumption

 N/A 4 W

Operating Temperature

 N/A +10 to +40 ºC

Ambient Conditioning Monitoring (Option)

 N/A THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Relative Humidity

 N/A 40 to 80 %

Net Weight

 N/A 15.73 lb7.14 kg

Packaging Dimensions

 N/A 21.46 x 17.91 x 22.64 in545 x 455 x 575 mm

Gross Weight

 N/A 23.13 lb10.5 kg

Features

Features

 N/A
  • 2 IR Sensors, hands-free operation
  • 3-way glass draft shield
  • 4 - Adjustable leveling feet
  • 7 in Graphic Color Touchscreen
  • 9 Databases that enable the operation of many users with numerous products, all stored data can be analyzed
    • Ambient Conditions (10,000 records)
    • ALIIBI memory (max (512,000 records)
    • Customers (max 1,000 customers)
    • Formulations (100 formulations)
    • Formulation reports (500 reports)
    • Packaging (100 packaging types)
    • Products (5,000 products)
    • Weighings (50,000 records)
    • Users (100 users)
  • Ambient Conditions Monitoring (option)
  • Anti-static pane coating
  • Calibration/Adjustment - Internal (automatic) + External
  • Communications: RS232, 2x USB-A (interchangeable), USB-B, Wi-Fi, Ethernet,
  • Compliance to 21 CFR part 11 (option)
  • Customization of display using widgets
  • Kensington Lock included, secures devise against theft
  • Manual Doors
  • OIML Class II
  • Protection - IP43
  • SMARTLab system ensures support and supervisor over mass measurement process, reduces human error factor.
  • Stainless steel weighing pan
  • Tool-free disassembly of the chamber
  • 2 Year Limited Warranty

Applications

Applications

 N/A
  • ALIBI Memory
  • Animal Weighing
  • Ambient Conditions Monitoring (option)
  • Autotest
  • Check weighing
  • Density Determination
  • Dosing
  • Formulation
  • GLP Procedures
  • Newton Unit of Measurement
  • Mass for Titrator
  • Parts Counting
  • Peak Hold
  • Percent Weighing
  • Statistics
  • Statistical Quality Control
  • Underpan Weighing (optional hook required)

Notes

Notes

 N/A

Ship point FL 33179
